DUKE BRIDGE PAVILION

DUKE BRIDGE PAVILION
DUKE UNIVERSITY, DURHAM, NORTH CAROLINA

AREA: 8,000 SF
PROGRAM: PEDESTRIAN BRIDGE, OUTDOOR PAVILION
DURATION: SPRING 2014–SUMMER 2016
CONSTRUCTION COST: $3,500,000
ARCHITECT: ARCHITECTURE OPERATIONS D.P.C. REID FREEMAN aia Principal
ARTIST / designer: JAMES CARPENTER DESIGN ASSOCIATES
STRUCTURAL ENGINEER: SCHLAICH BERGERMANN PARTNER
LANDSCAPE ARCHITECT: REED HILDERBRAND LLC
AWARDS: 2017 AIA NEW YORK STATE DESIGN CITATION AWARD, 2016 AIA NORTH CAROLINA DESIGN HONOR AWARD

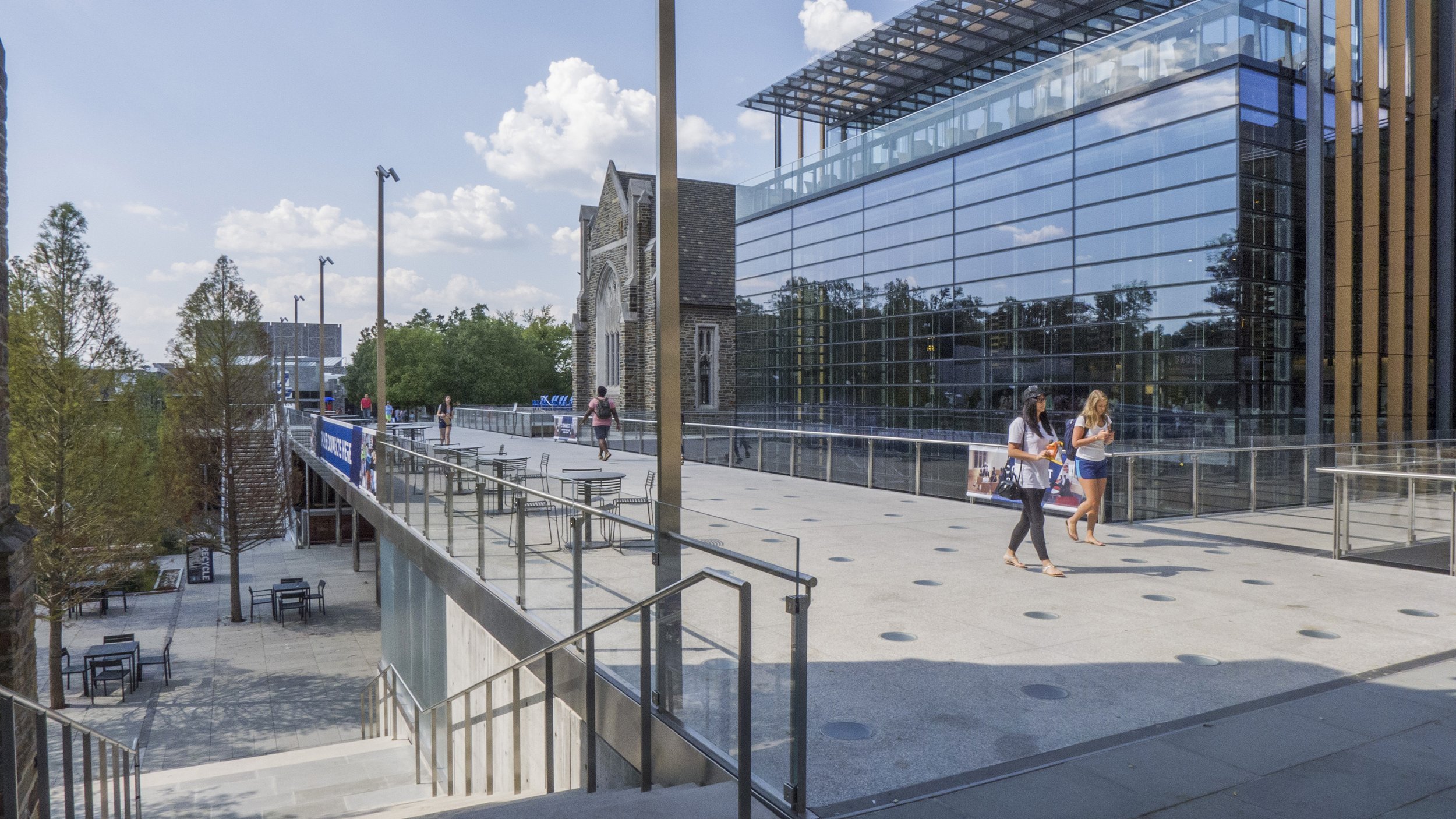

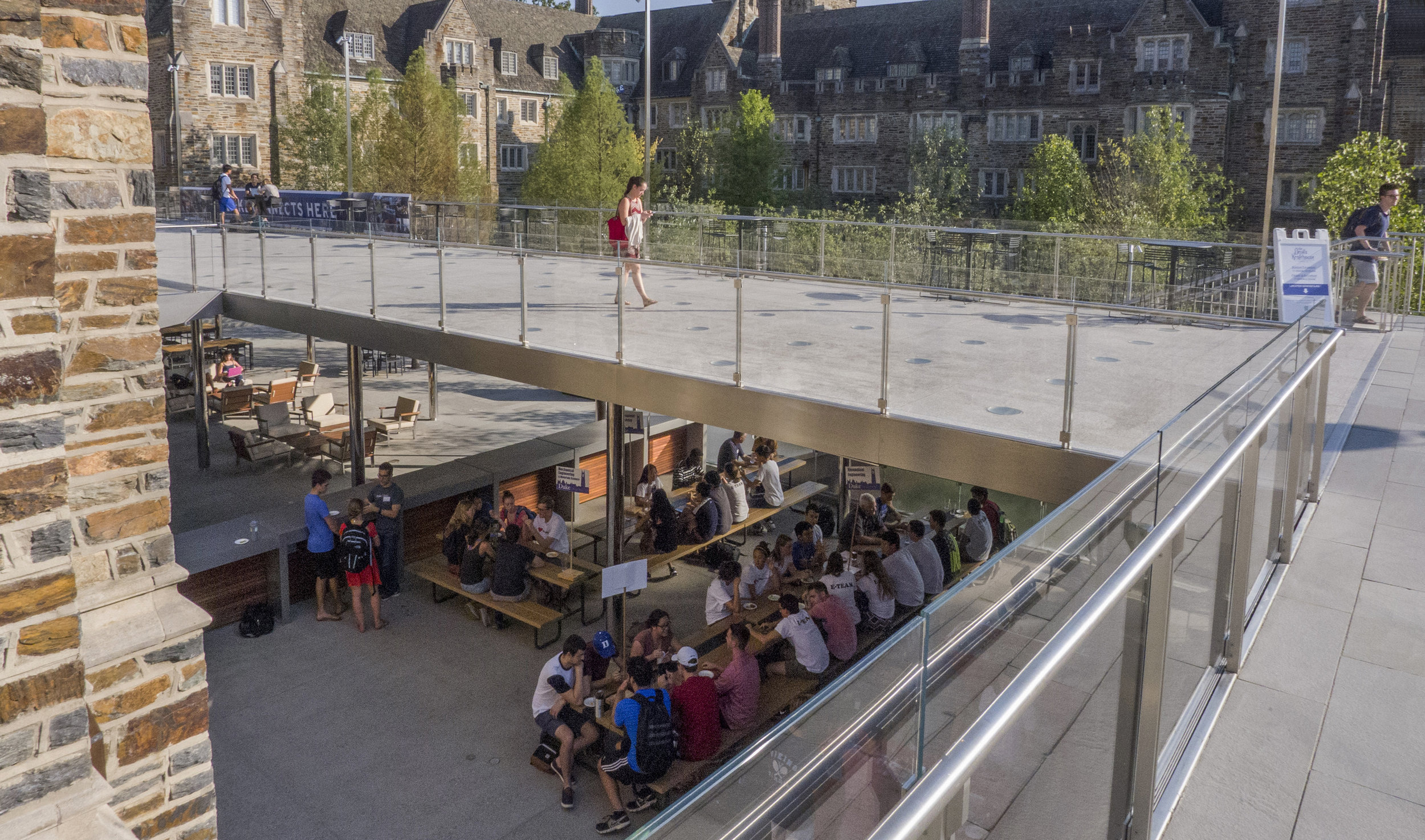

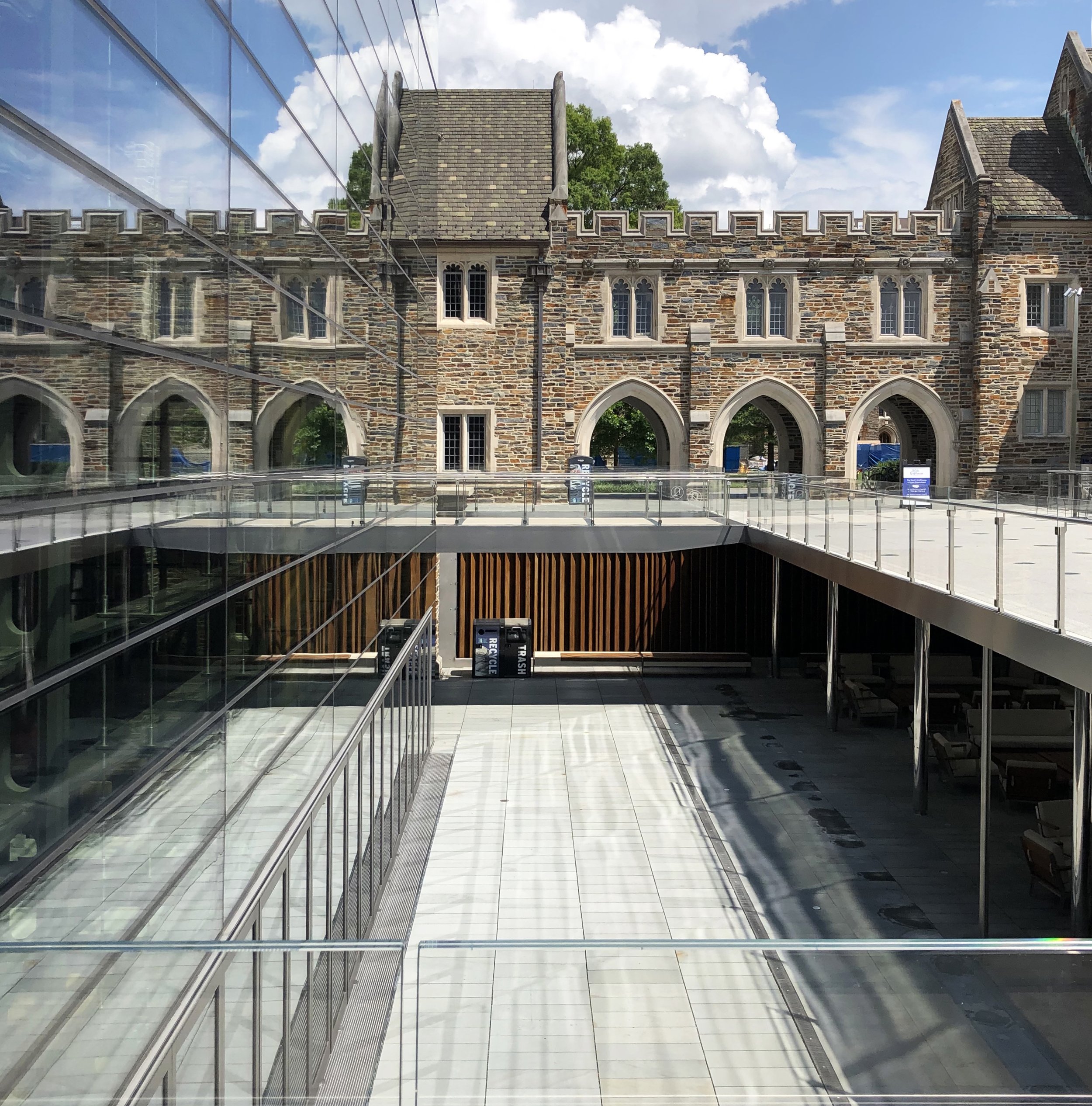

Situated in the heart of Duke’s Campus, the Bridge Pavilion is both the primary piece of circulation infrastructure in the West Union District of the Durham campus and a shaded outdoor pavilion for social gathering, study, and dining. The Bridge Pavilion is an informal social and cultural node for students and faculty. The coffered concrete roof serves as a physical bridge for students passing through the West District and provides access to the new West Union Broadhead Center. Cast glass lenses embedded in the concrete bridge deck bring daylight to the spaces below and display the pulse and activity of student circulation waves throughout the day.

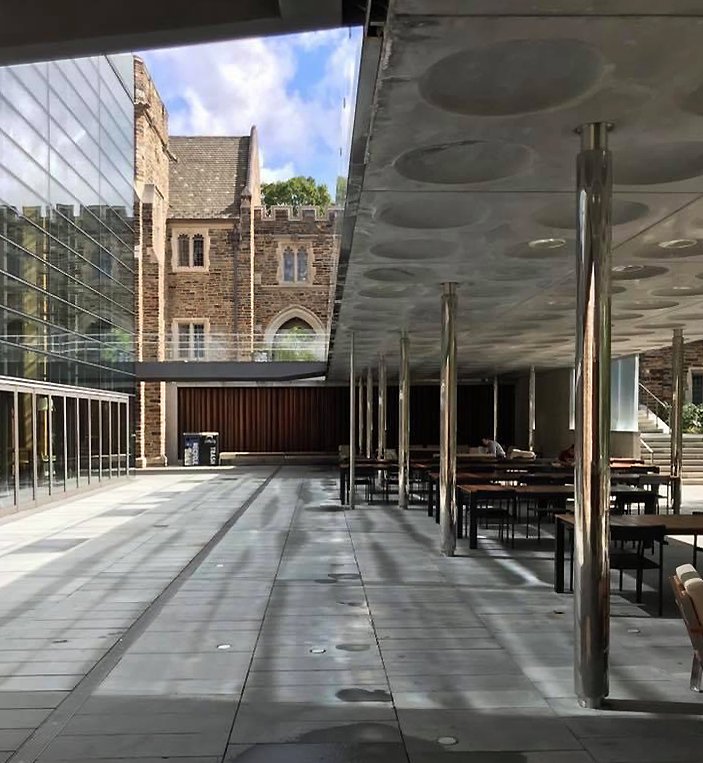

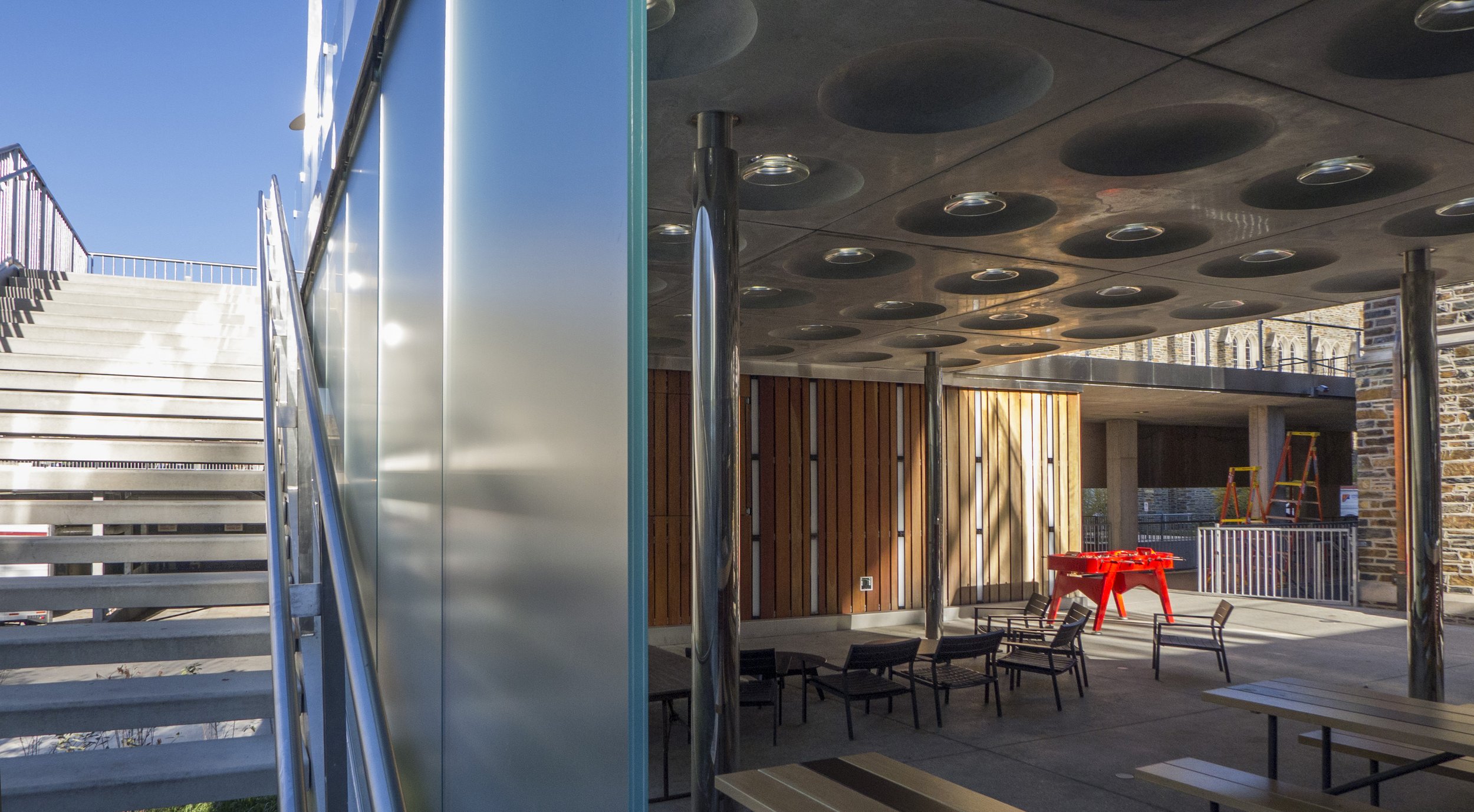

In the pavilion, the reflective surface of the structural concrete slab soffit is achieved using custom formwork. The mirror finish of the polished stainless steel columns captures color, light, and views of the adjacent landscape of Crown Commons and the changes of light and color throughout the days. Strategic vertical planes of etched glass subtly define rooms and enclosure while maintaining an accessible and welcoming atmosphere. The etched glass walls moderate the outdoor conditions and collect, abstract, and display light and color from the adjacent landscape.

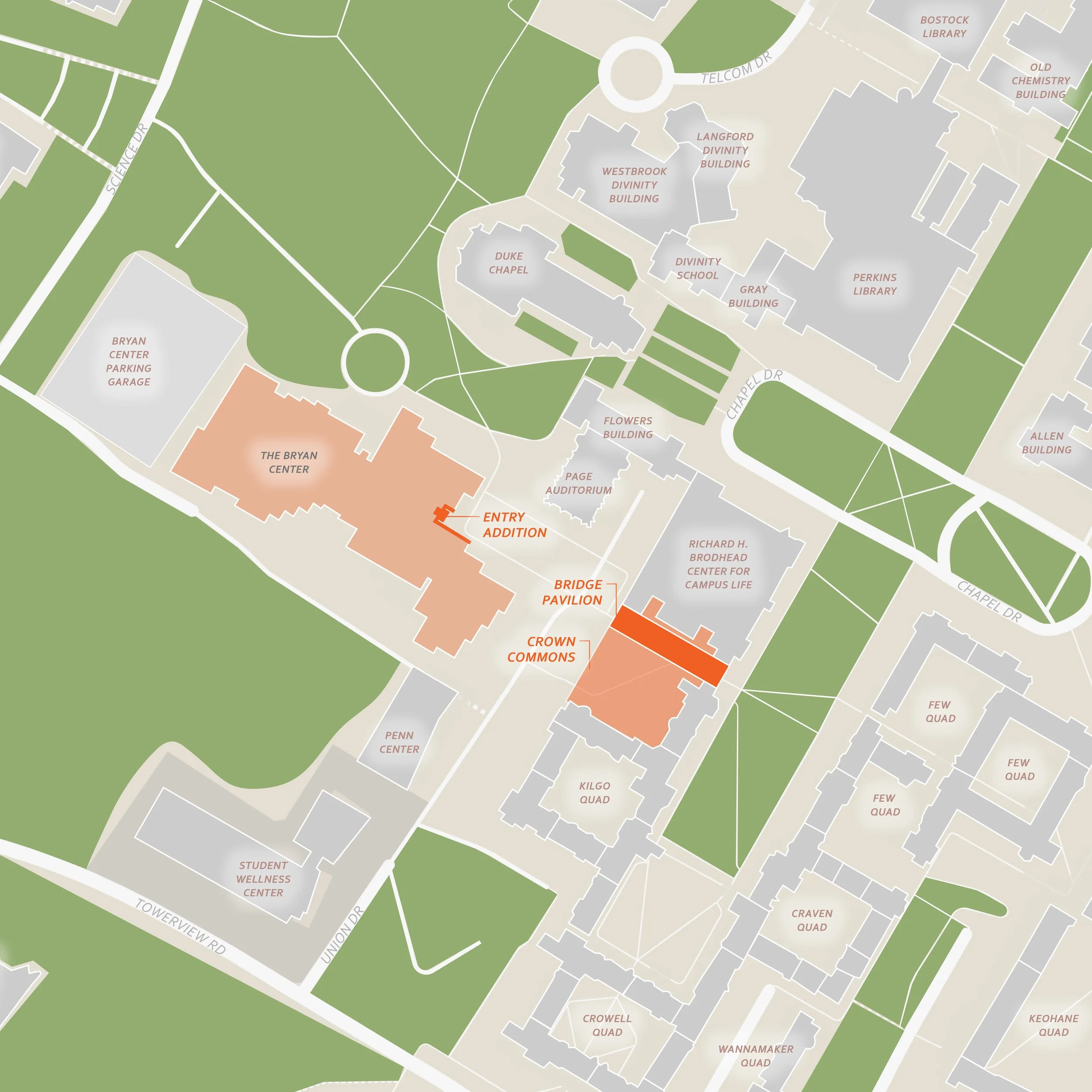

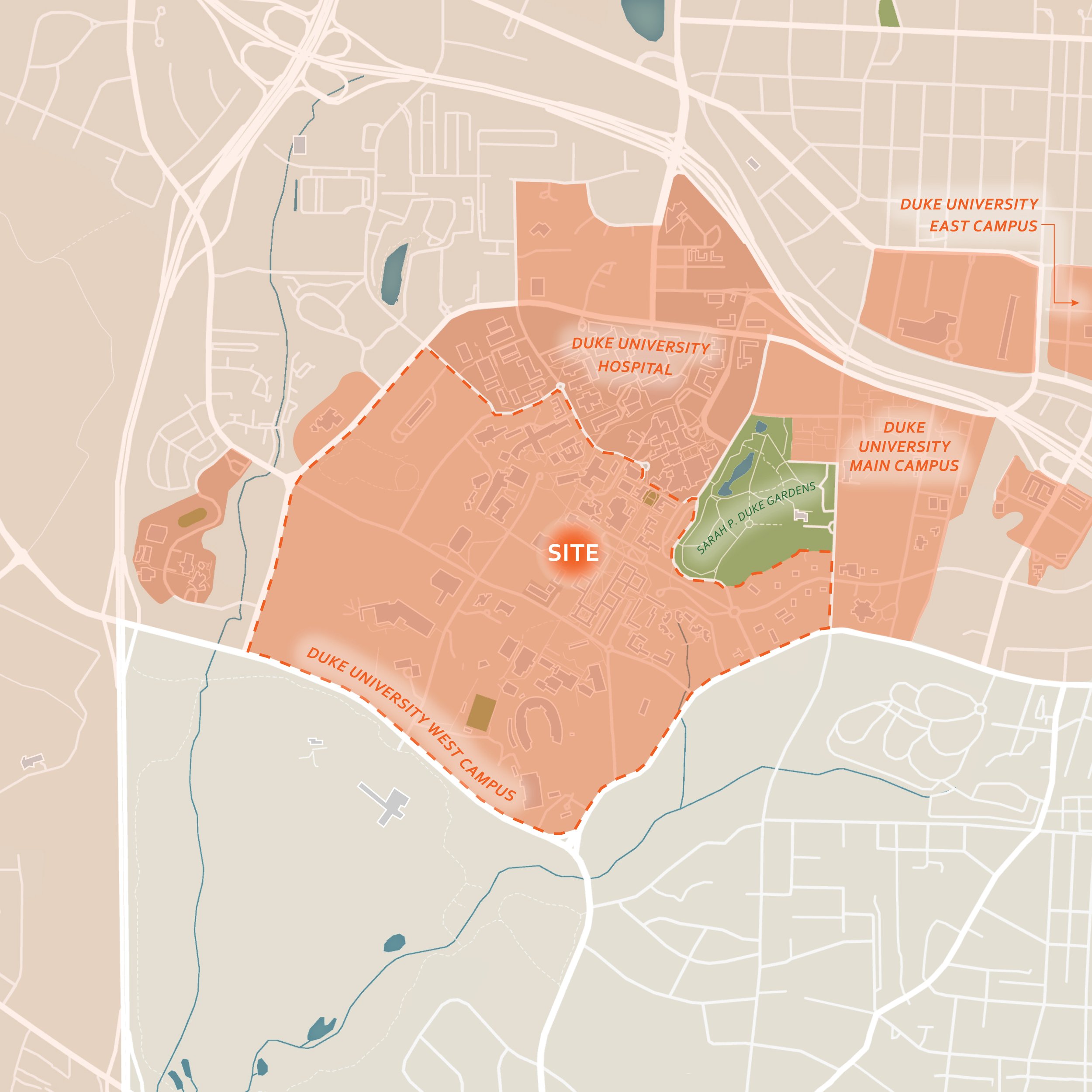

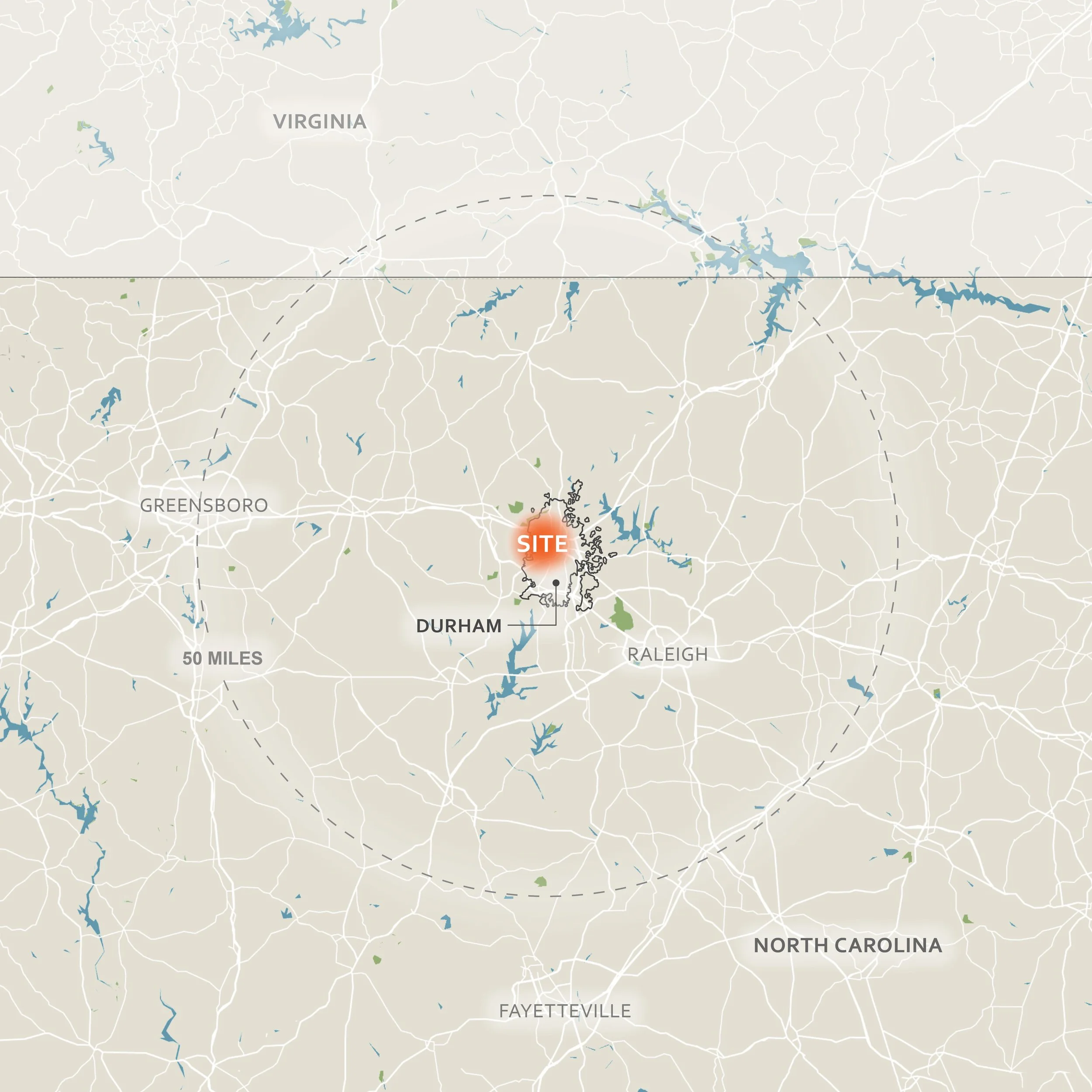

SITE LOCATION PLANS

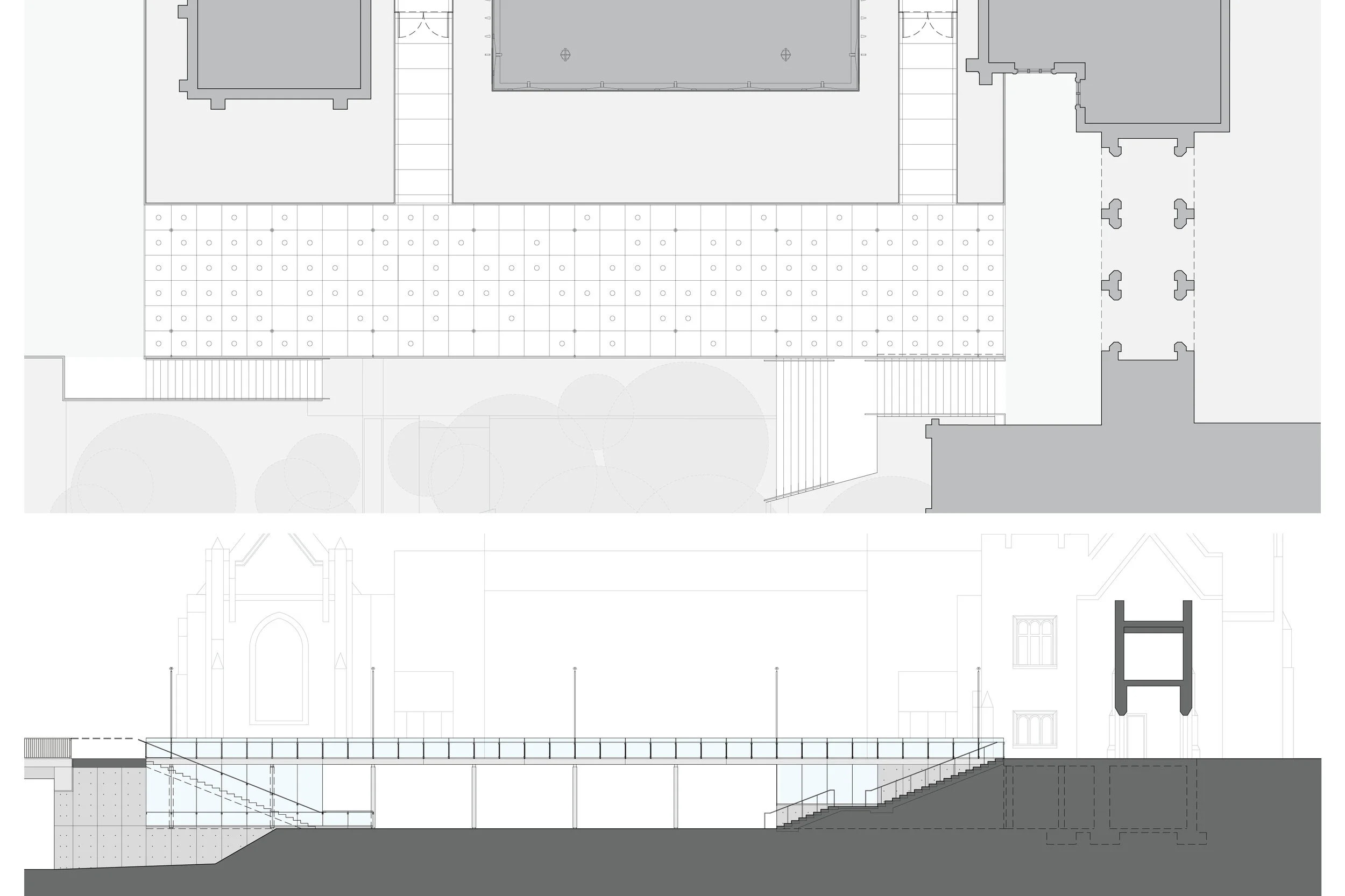

Architectural plan drawing of bridge and section depicting different levels

BRIDGE PAVILION ROOF PLAN AND SOUTH ELEVATION

The thin concrete structure is supported with slender mirrored stainless steel columns and one shear wall. The underside of the bridge acts as the pavilion ceiling with coffers that remove mass and add structural efficiency. The ceiling visually references the waffle slab and skylight system of the nearby Bryan Center, a student services building at the terminus of the bridge’s axis.

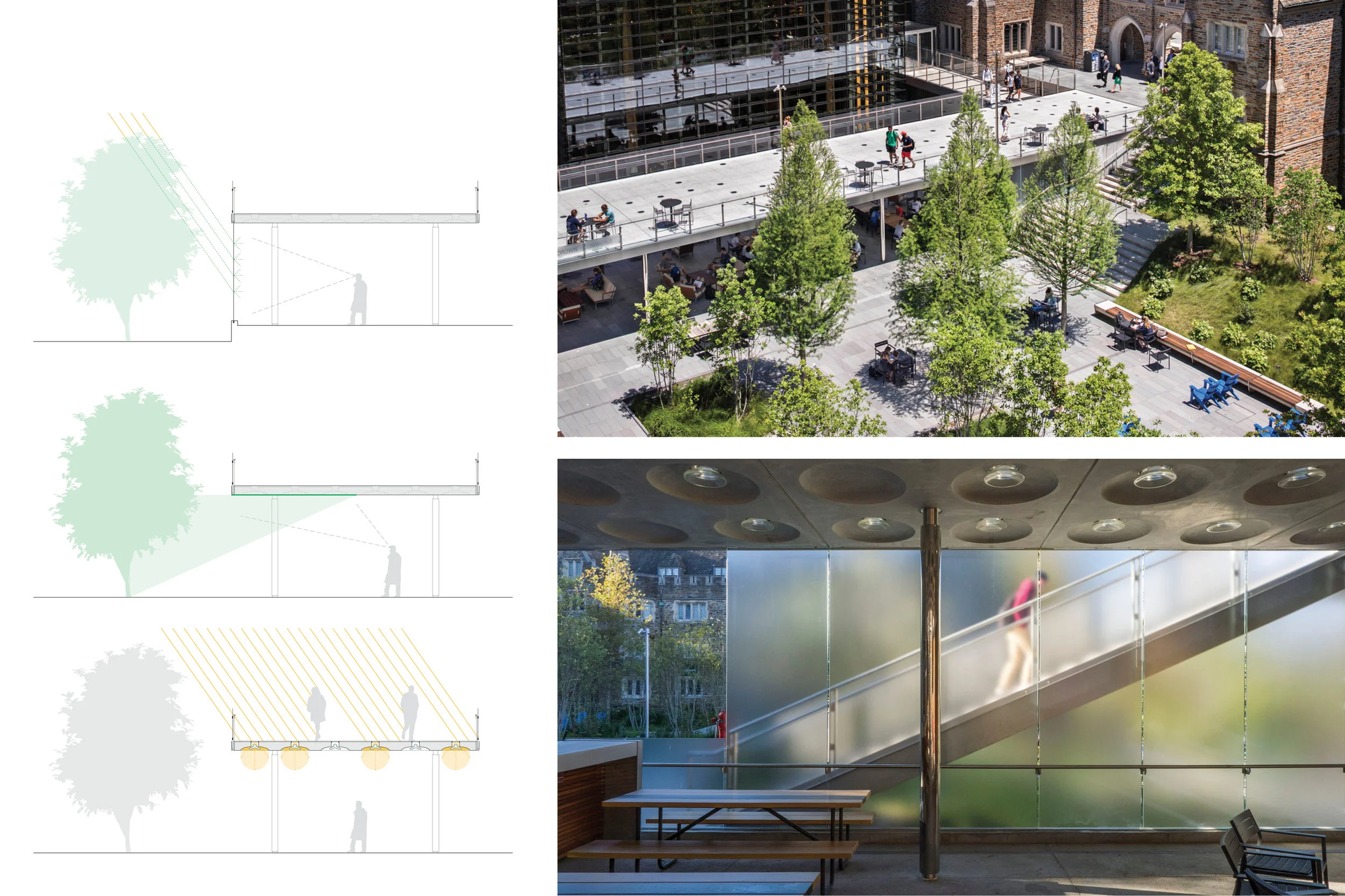

Image grid of graphic sun and shade studies, aerial image of bridge and commons, image of sun lit frosted glass

DESIGN STRATEGIES TO COLLECT AND DISPLAY LIGHT AND LANDSCAPE

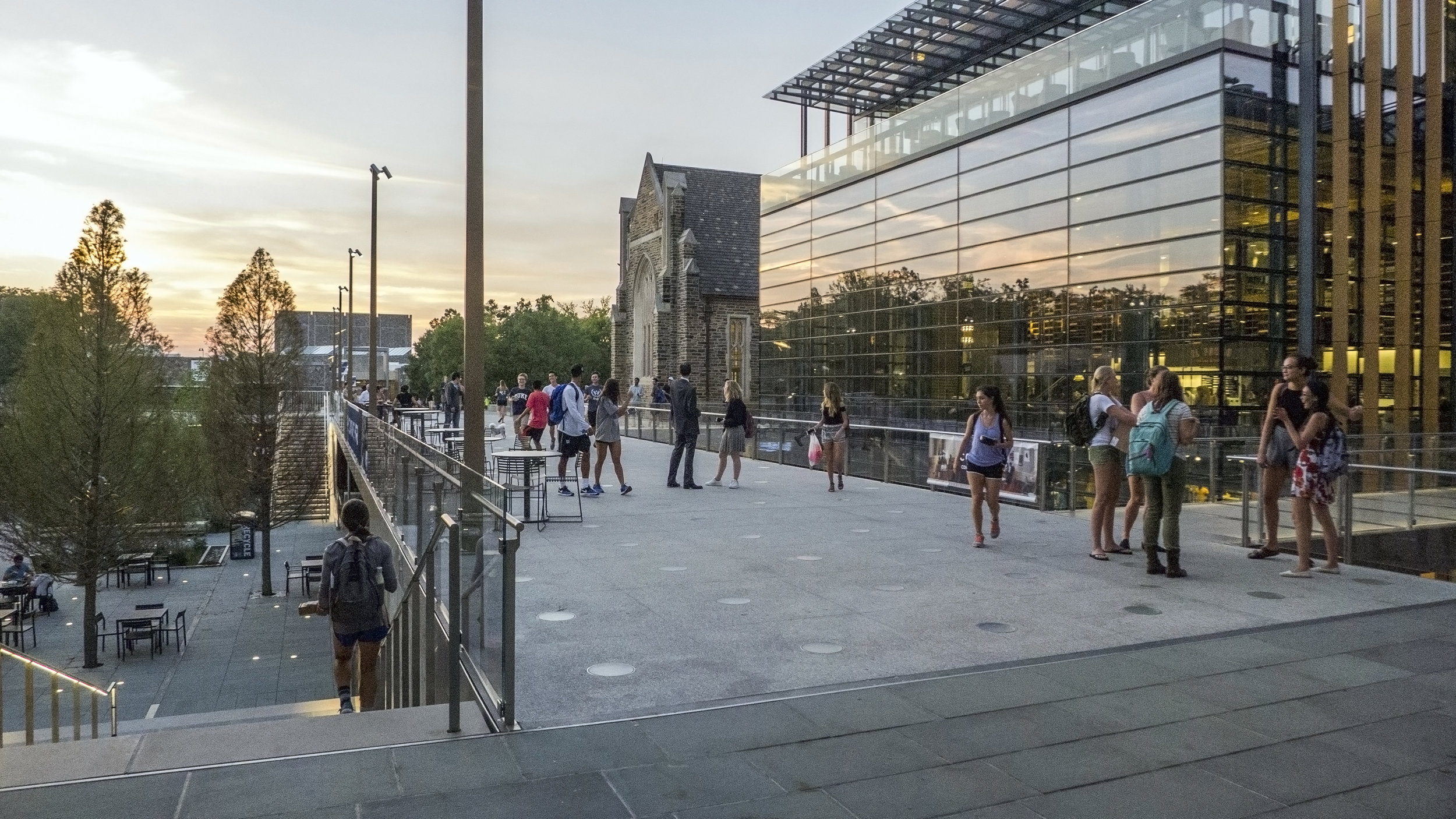

At the center of selected coffers is a void occupied by a prismatic glass. In a synthesis of the forest canopy, the prismatic glass lenses gather, display the sky dome, project light to fill the bridge deck’s shadows, and flicker as students pass by above. Students traversing the bridge become aware of activity below transmitted through the cast lenses, and projected onto the lightly etched surface of the glass pavers flush with the deck. Figures, colors and movement are essentially embedded in the bridge.

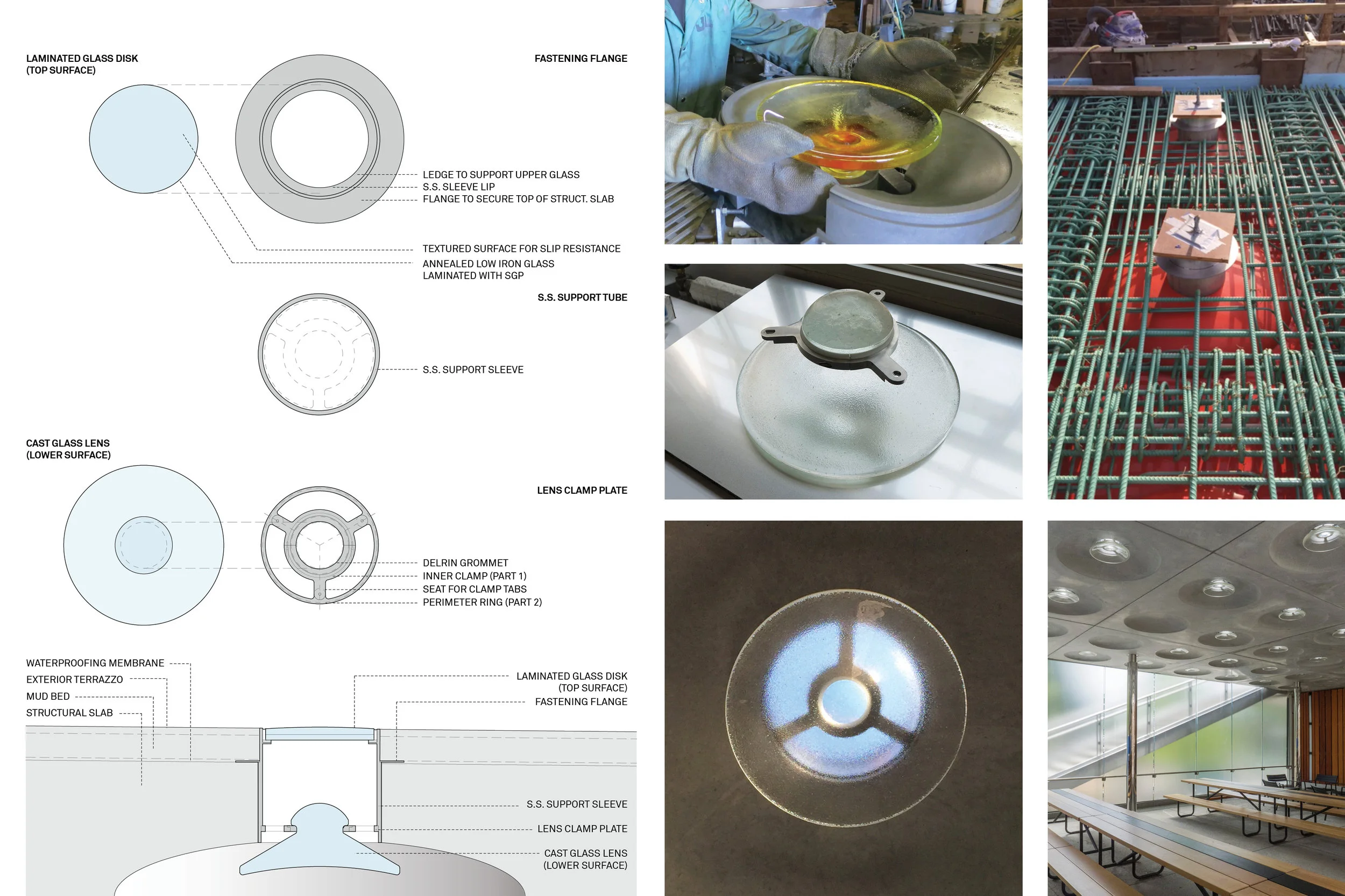

Image grid of graphic diagrams of construction, photos during construction and glass casting

BRIDGE DECK DAYLIGHT LENS DETAILS AND FABRICATION

PLA, acrylic, spray paint on PLA, 3d print model of section

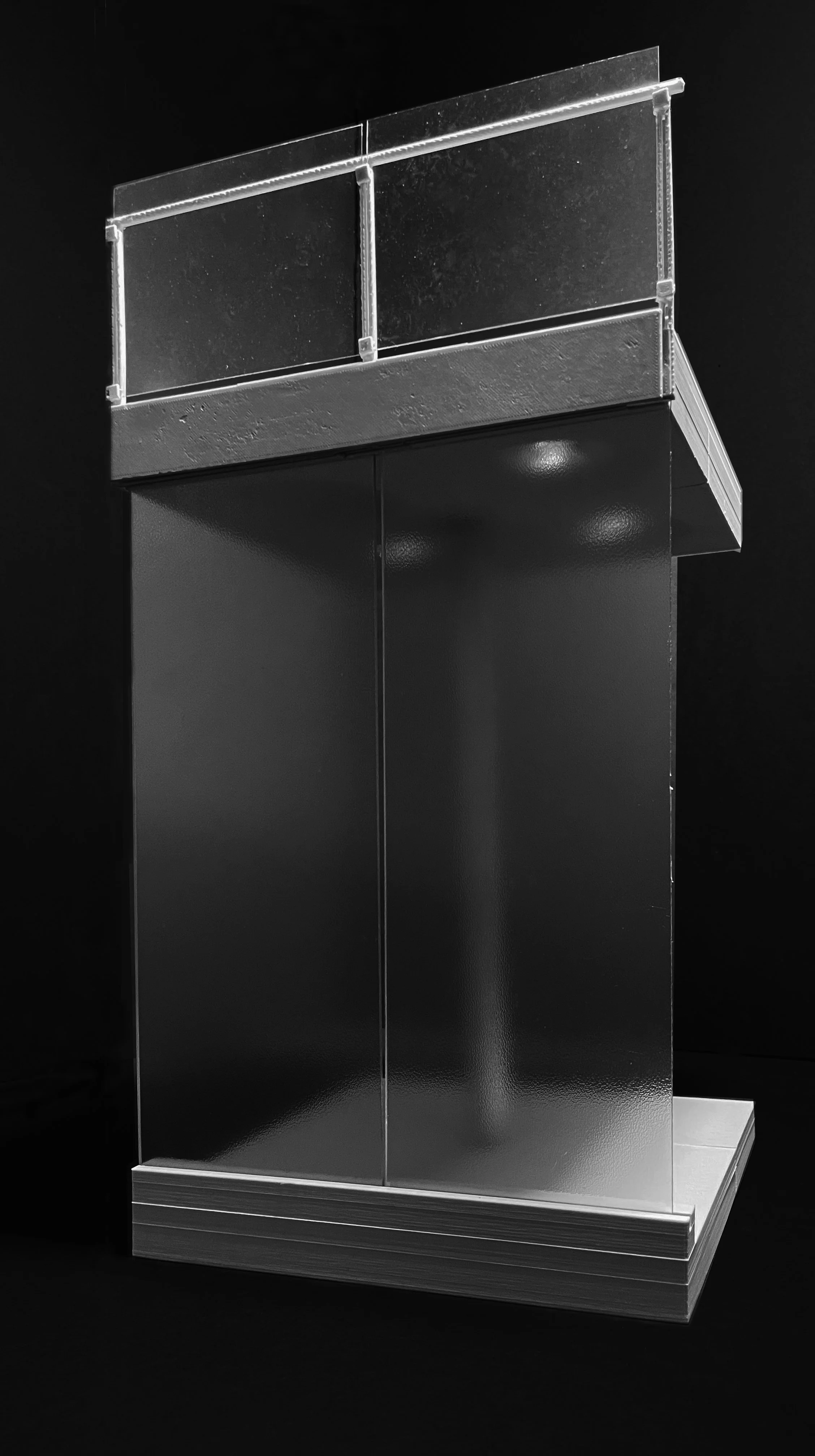

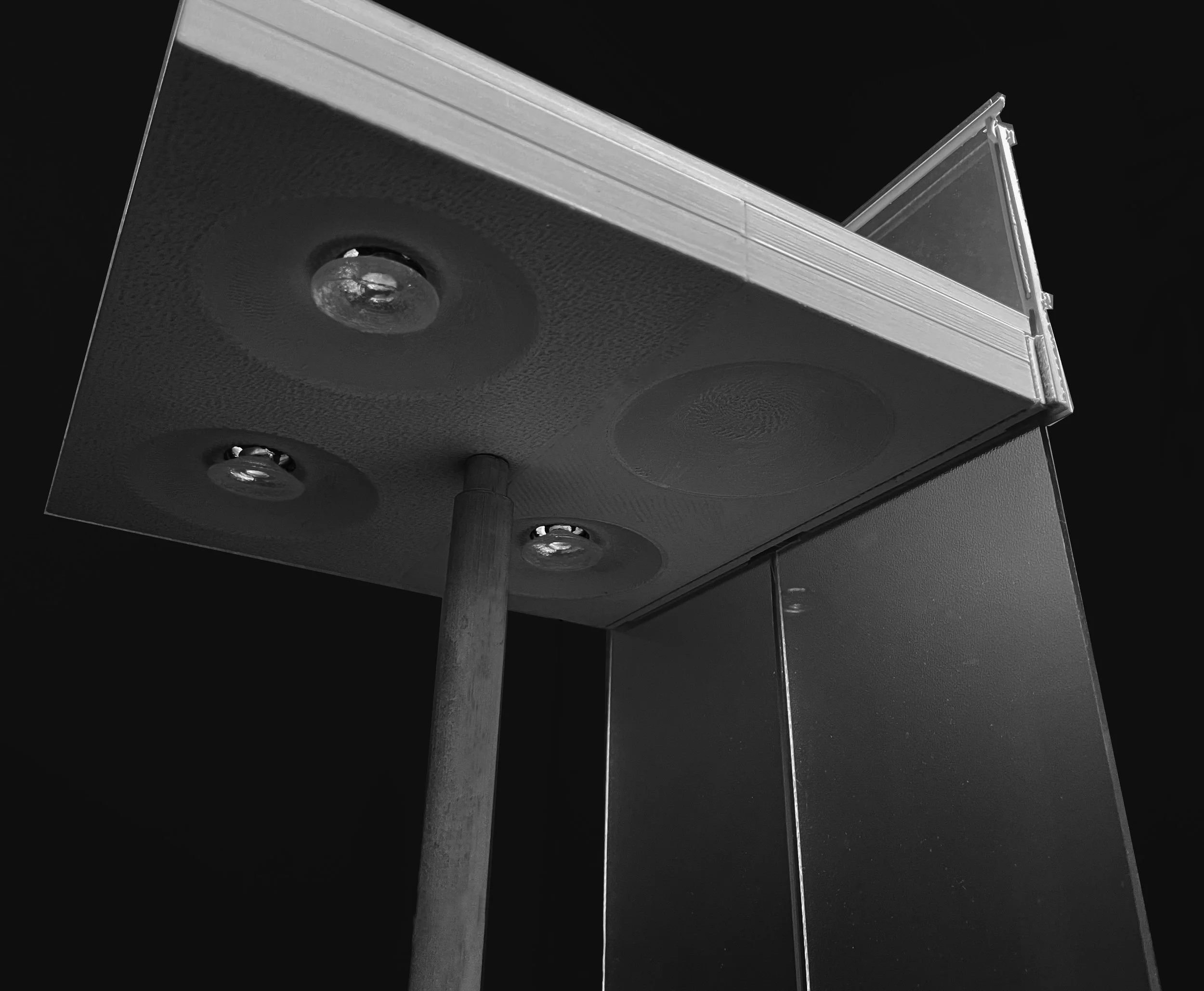

PLA and acrylic model of column detail and coffered ceiling with glass casts

BRIDGE PAVILION WALL SECTION AND DECK MODEL

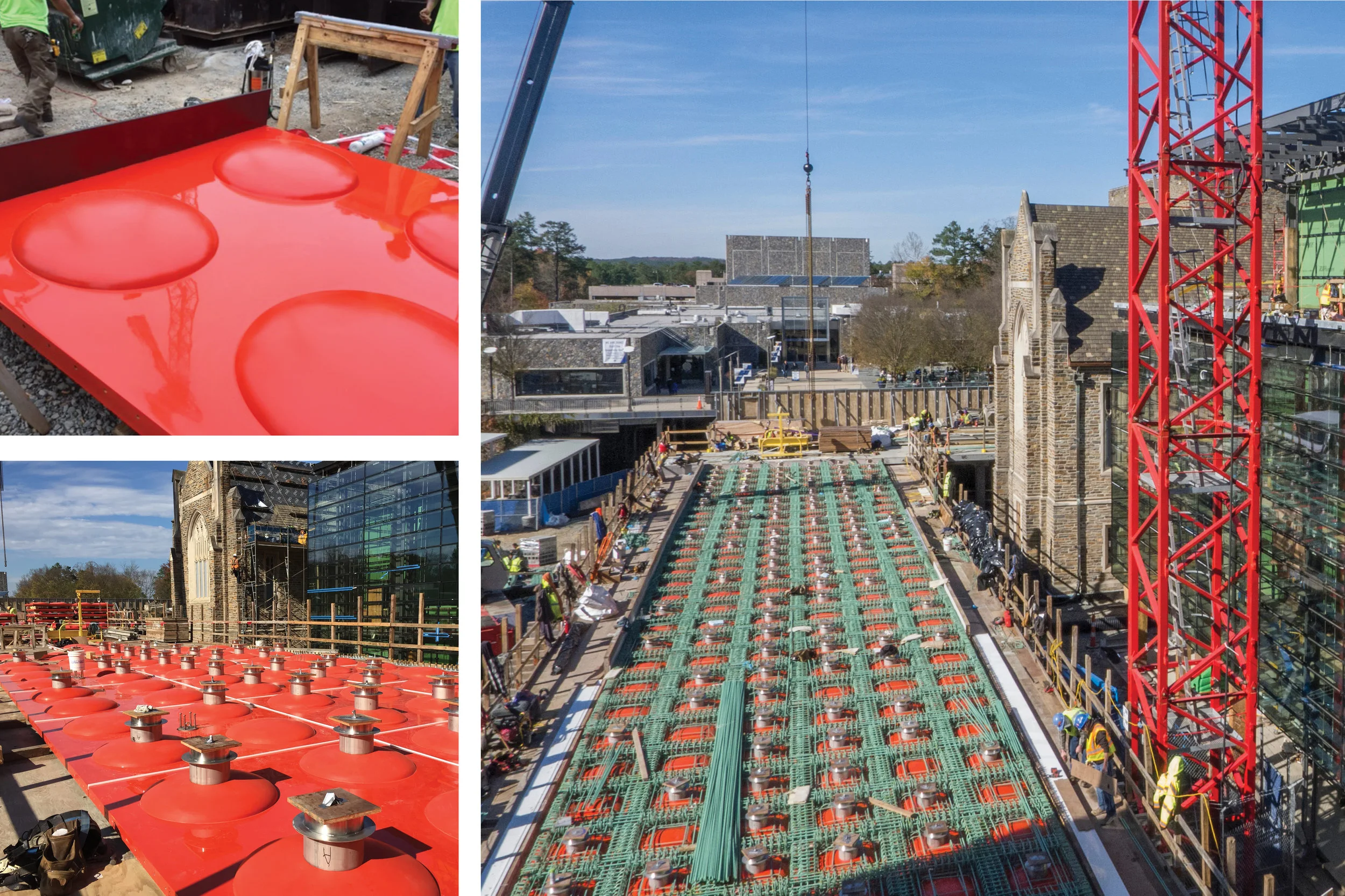

Image grid of mid construction of bridge slab, red coffer formwork, green rebar structure, red crane

CONSTRUCTION PHOTOS SHOWING LENS SLEEVE INSERTS AND CUSTOM CONCRETE FORM LINERS

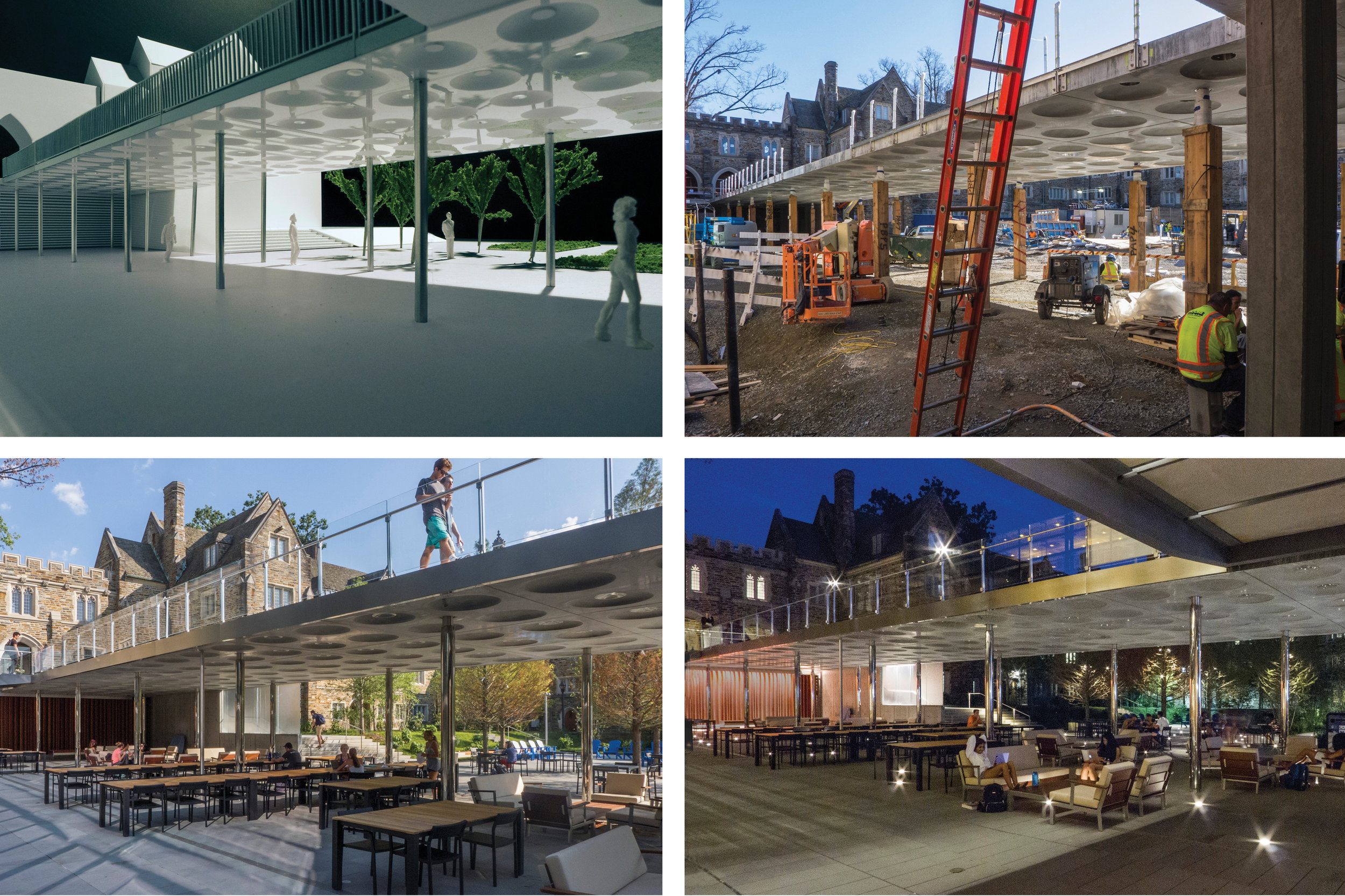

Image grid, rendering of pavilion bridge, construction of casted concrete bridge; day and night occupied

PERSPECTIVE FROM DESIGN CONCEPT TO CONSTRUCTION COMPLETION

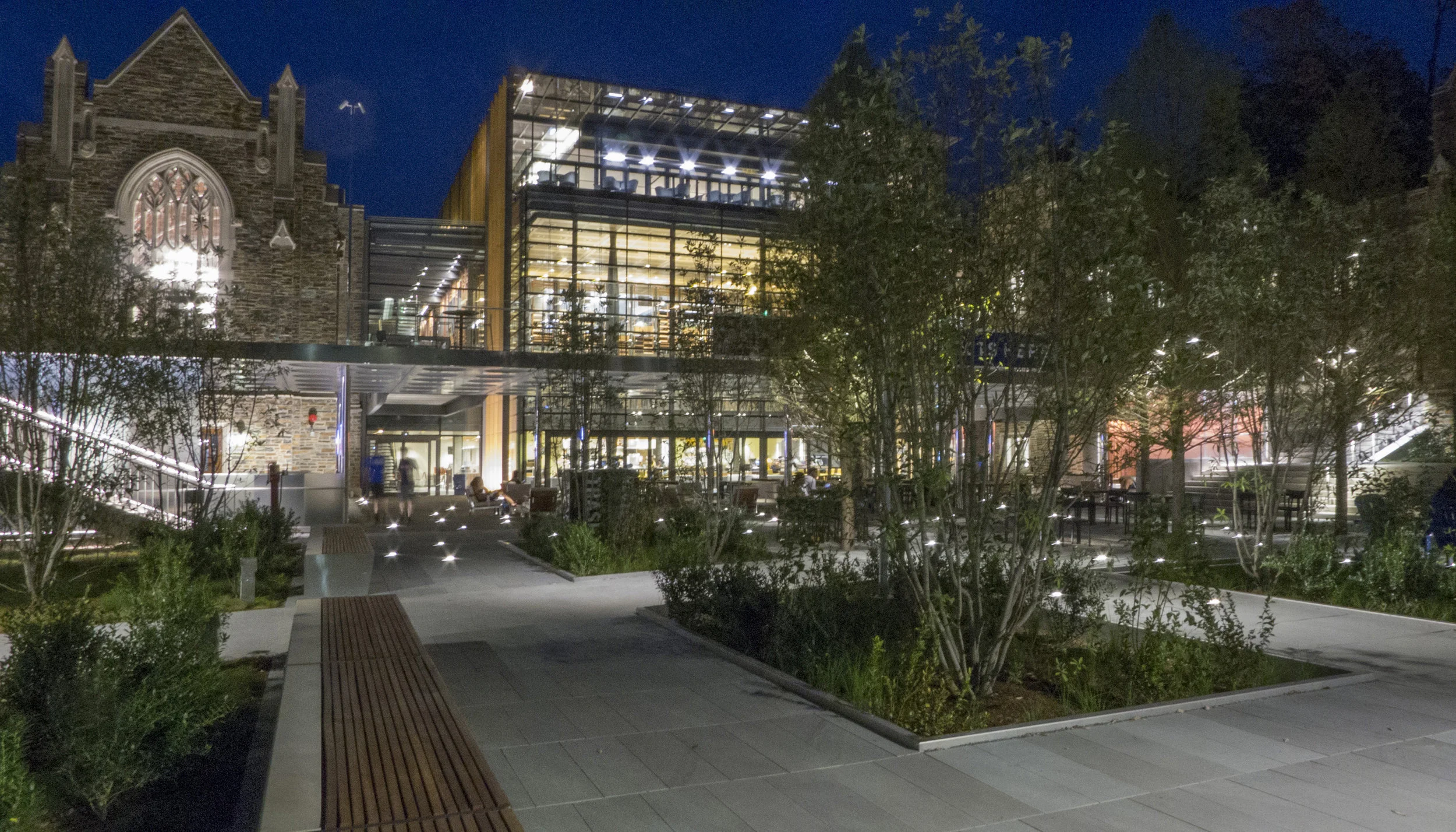

Night time, glass façade interiorly lit behind bridge pavilion as thin horizontal, walkway and plant beds with benches

SOUTH VIEW TOWARD BRIDGE PAVILION AND WEST UNION FROM CROWN COMMONS
