HILLSIDE LODGE

HILLSIDE LODGE
CARRABASSETT VALLEY, MAINE

AREA: 5000 sf
PROGRAM: WILDERNESS TRAIL LODGE (COMPETITION)
DURATION: 4 WEEK DESIGN PHASE, FALL 2018
COST: TBD
ARCHITECT: REID ARCHITECTURE PLLC, REID FREEMAN, architect

The program for the Hillside Lodge consolidates trail cabins into one central lodge to reduce the area of disturbance to the site and forest. The lodge borrows formal characteristics from vernacular resort lodges, cabins, barns, and the treehouse to create a formal language that connects visitors to Maine’s wooded landscape.

Primary public programs are located at the east end where they have views out through the high tree canopies to landmarks of Caribou Pond, Sugarloaf Mountain, Spaulding Mountain, and Mount Abraham. The interior space of the lodge grows as the roof expands to the east to take advantage of the remarkable vistas of the site in central west Maine and along the Appalachian Trail. The building is sited to anchor the west end of the long lodge into the grade at the approach from the walking trail while the east end cantilevers off of the foundation to position visitors among the tree canopy.

Sourcing for CLT, Gluelam columns and beams, wood windows, and exterior cladding are intended to draw on local resources and Maine’s sustainable timber industry to help reduce the carbon impact of the lodge construction.

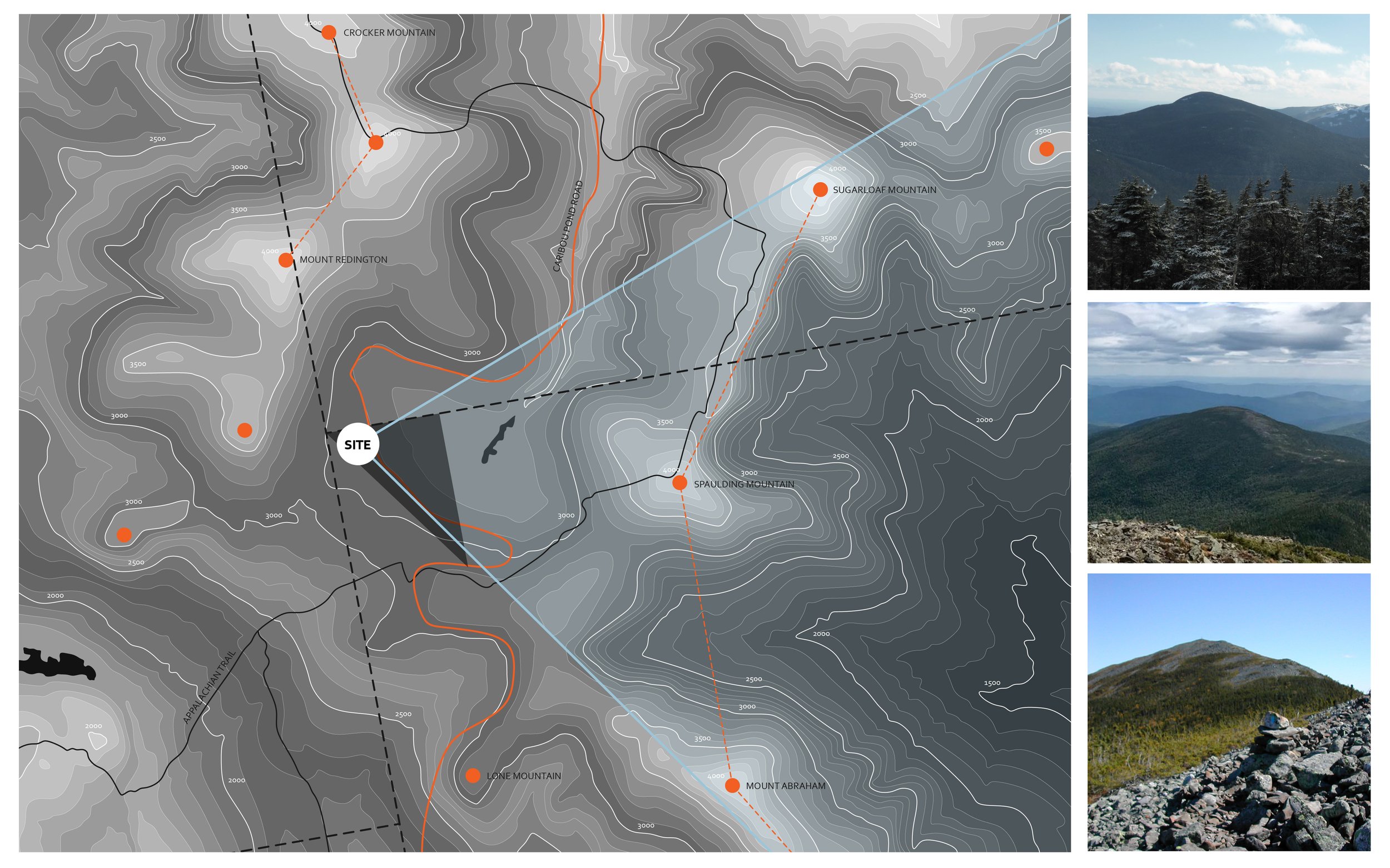

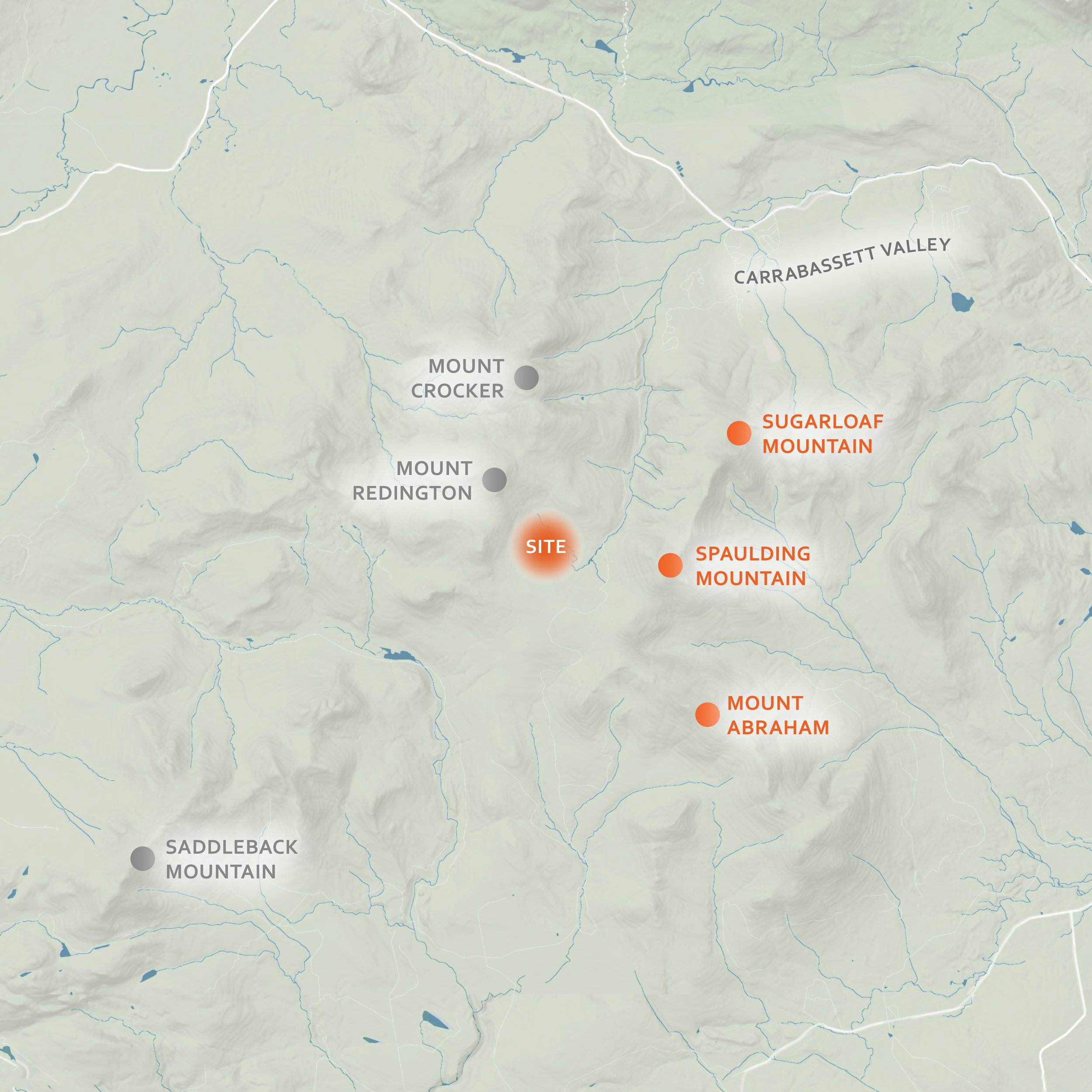

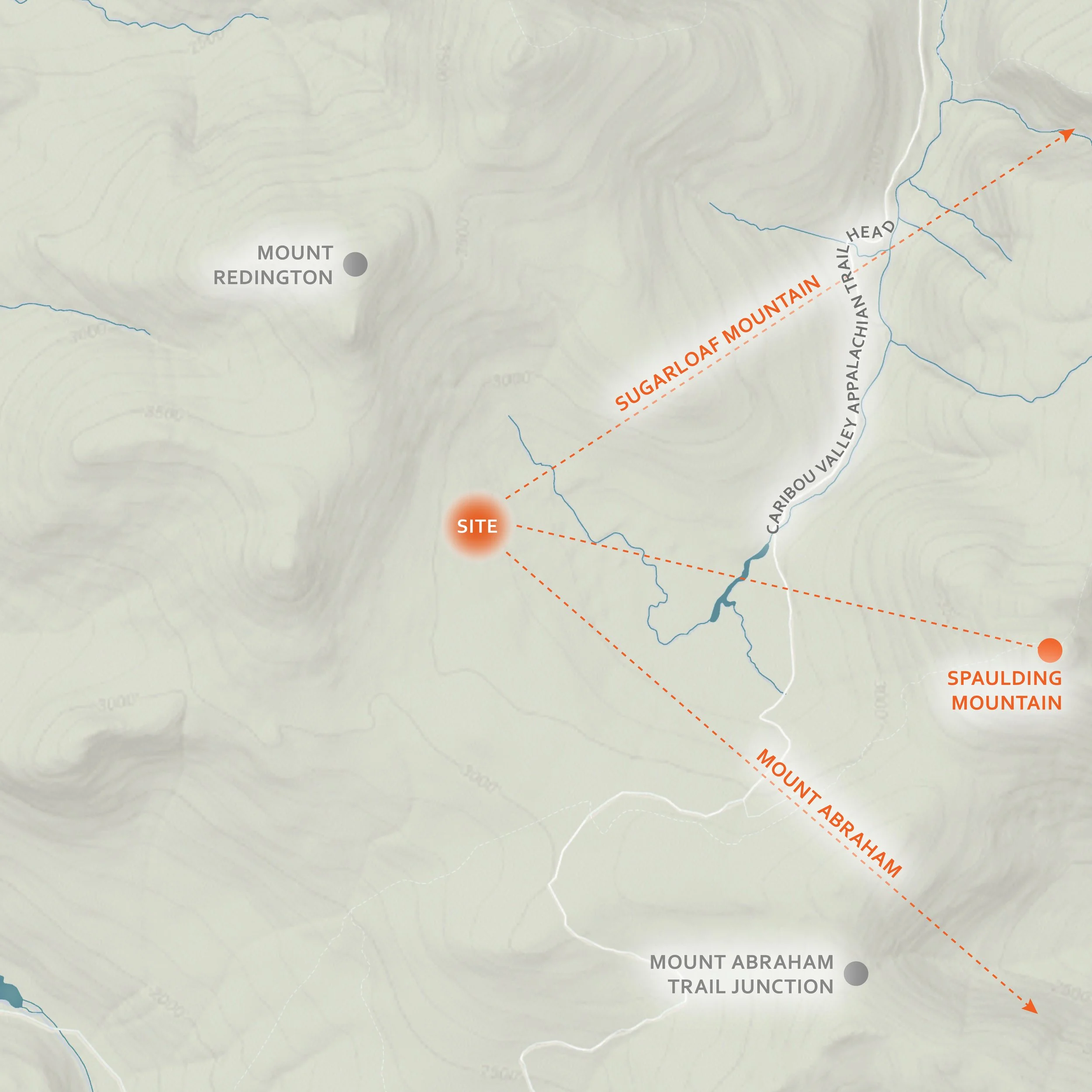

LEFT: BUILDING ORIENTATED E/W TO FACE THE 4000 FOOTERS; RIGHT: SITE PLAN

LEFT: BUILDING ORIENTATED E/W TO FACE THE 4000 FOOTERS; RIGHT: SITE PLAN

The project site of Carabasset County in western Maine is adjacent to the Appalachian Trail and a network of mountain trails that draw hikers and outdoor recreationists to the region through out the year. The Hillside Lodge serves as a base camp and trail lodge to support year round activities. Rain water collection and composting toilets help reduce the local impact of the remote structure.

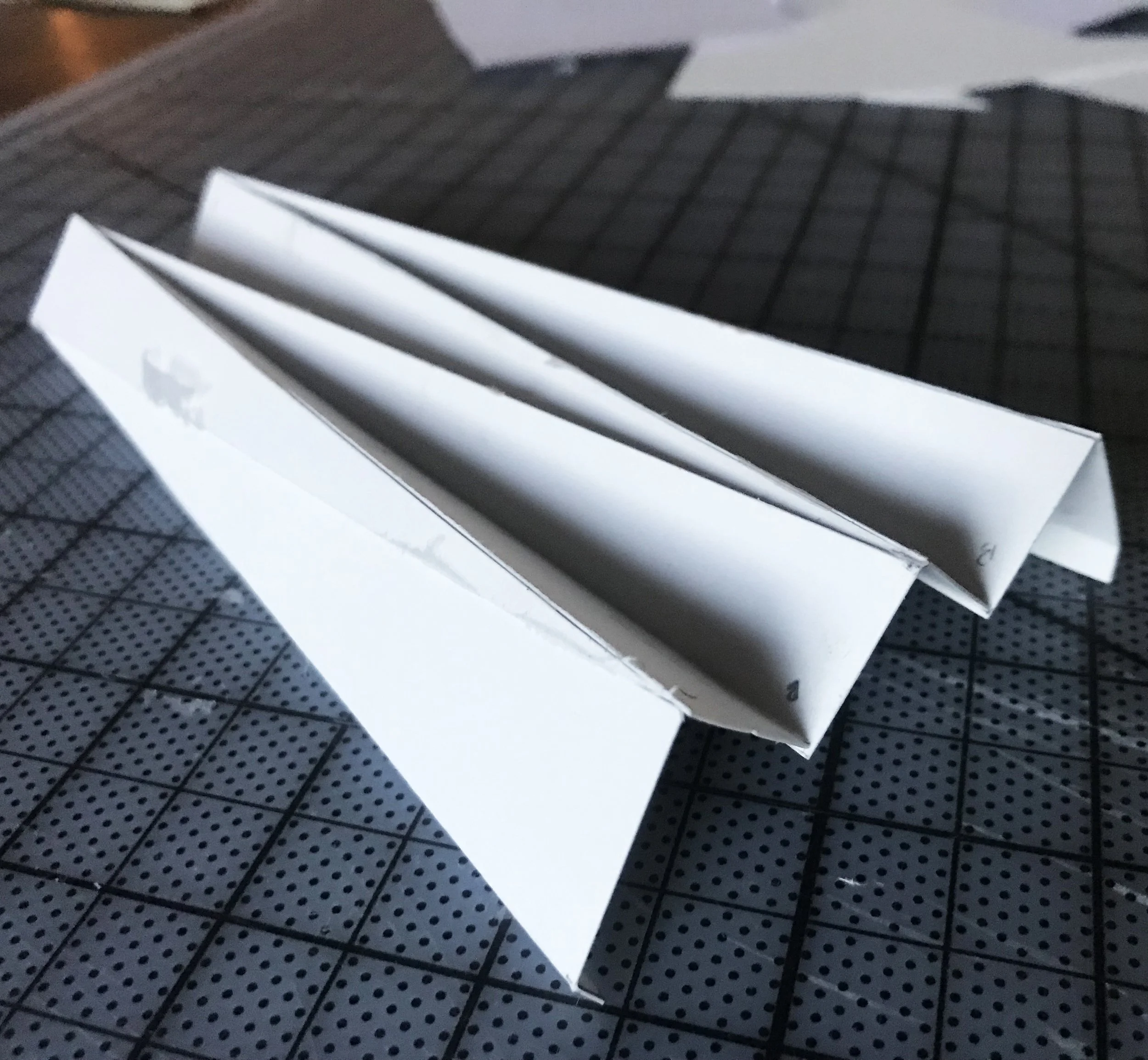

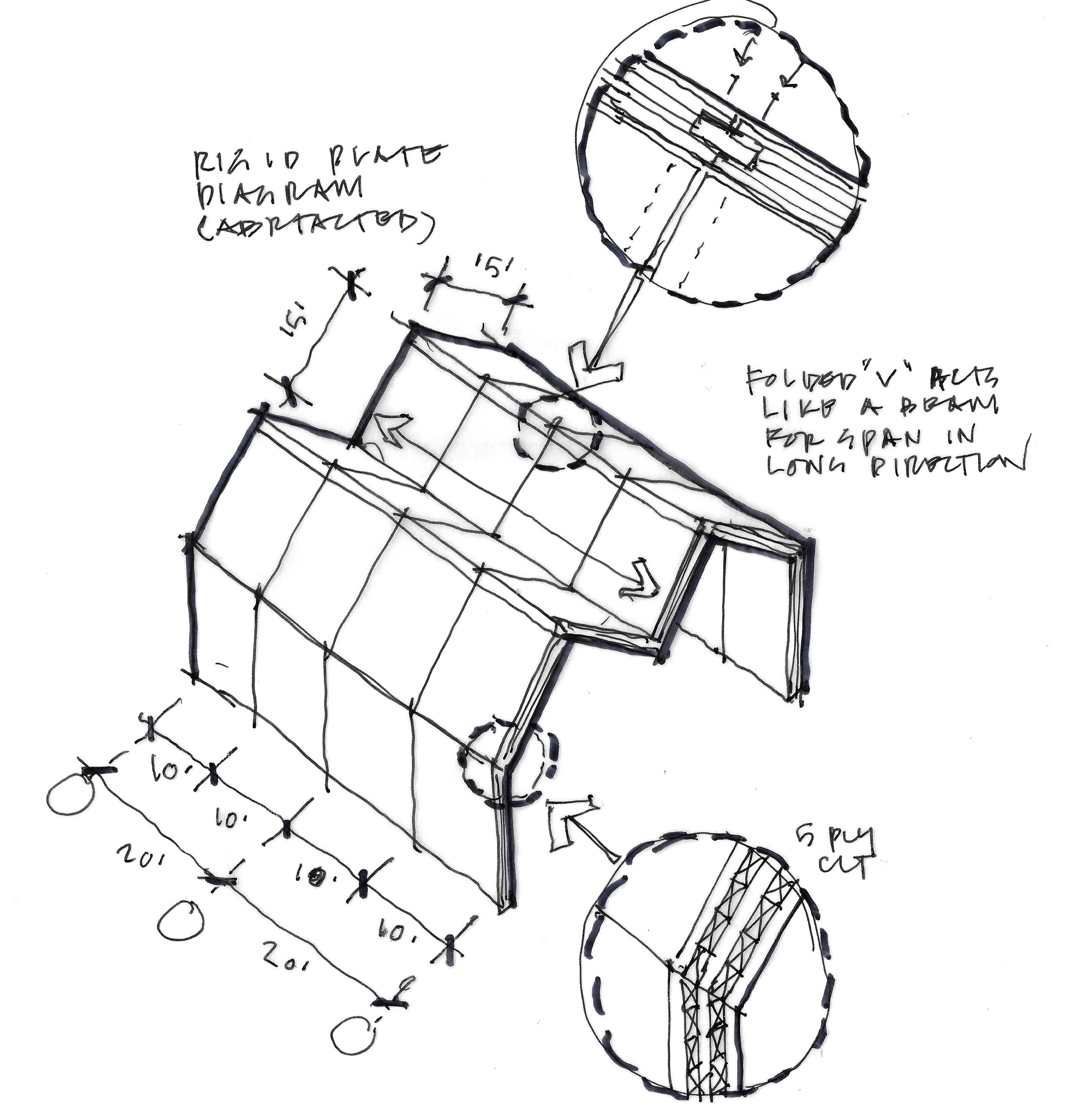

The structural approach to the mass timber lodge is to connect walls, roof, and floor to create a rigid tube or shell. This allows the roof to help carry the load of the cantilever beyond the cast concrete and granite clad foundation walls. The roof is also stiffened by the folds that are introduced to help control water flow, define interior space, and relate to the vernacular barn typology.

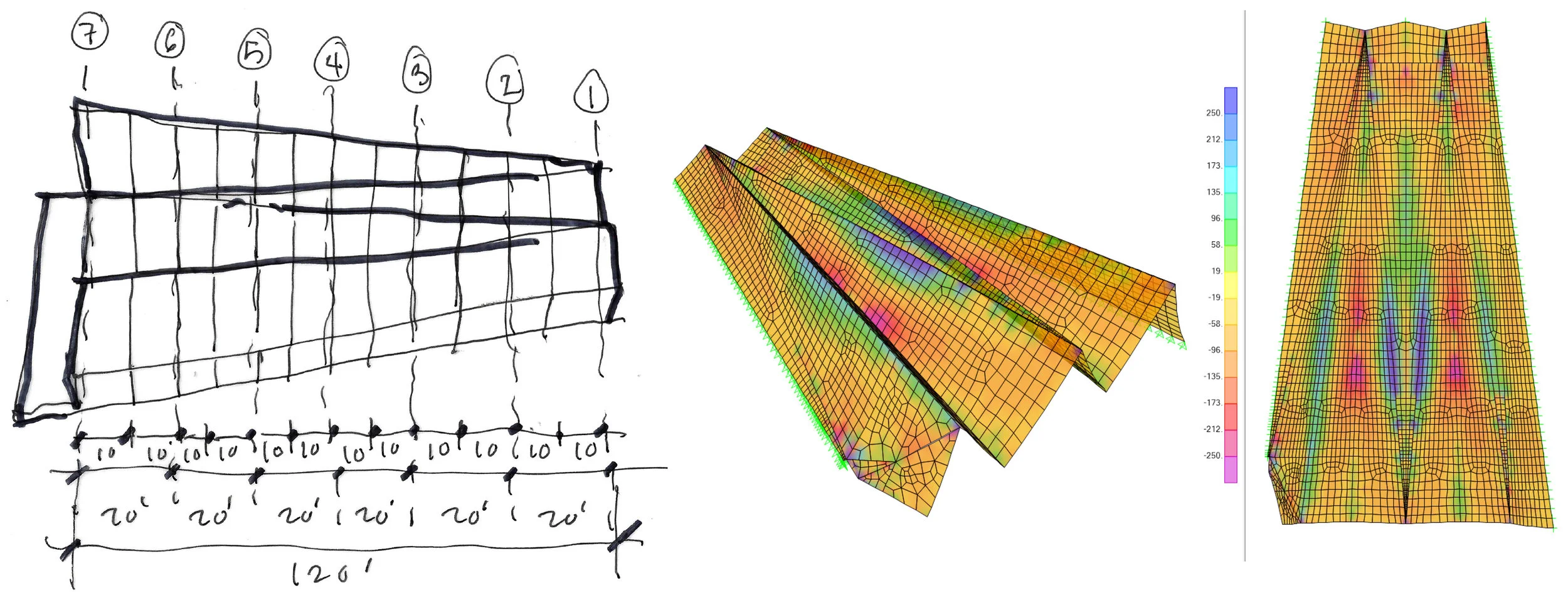

LEFT: CLT PANEL DIAGRAM; RIGHT: STRESS ANALYSIS DIAGRAMS OF CLT ROOF

LEFT: CLT PANEL DIAGRAM; RIGHT: STRESS ANALYSIS DIAGRAMS OF CLT ROOF

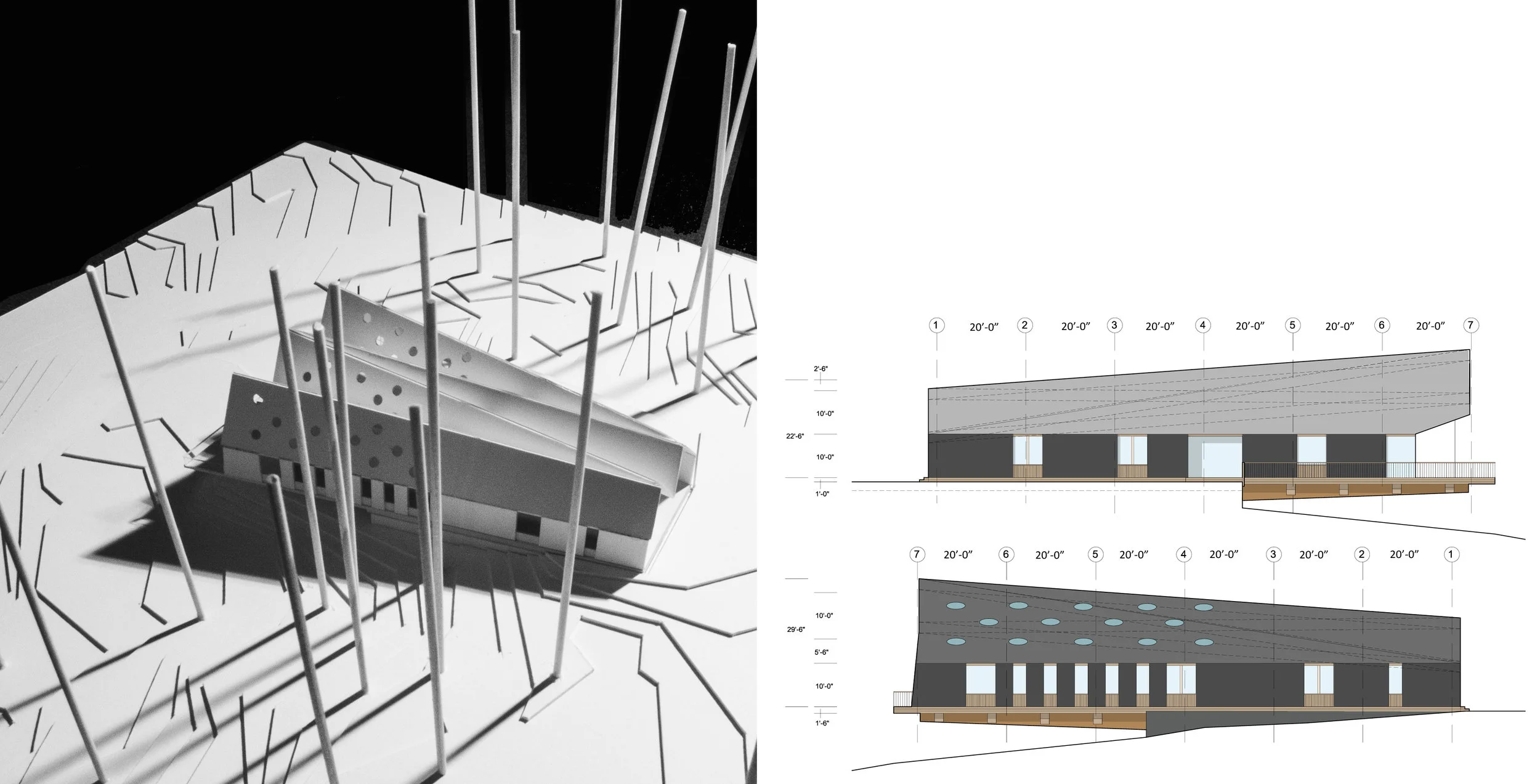

RIGHT: SOUTH (TOP) AND NORTH (BOTTOM) ELEVATIONS

RIGHT: SOUTH (TOP) AND NORTH (BOTTOM) ELEVATIONS

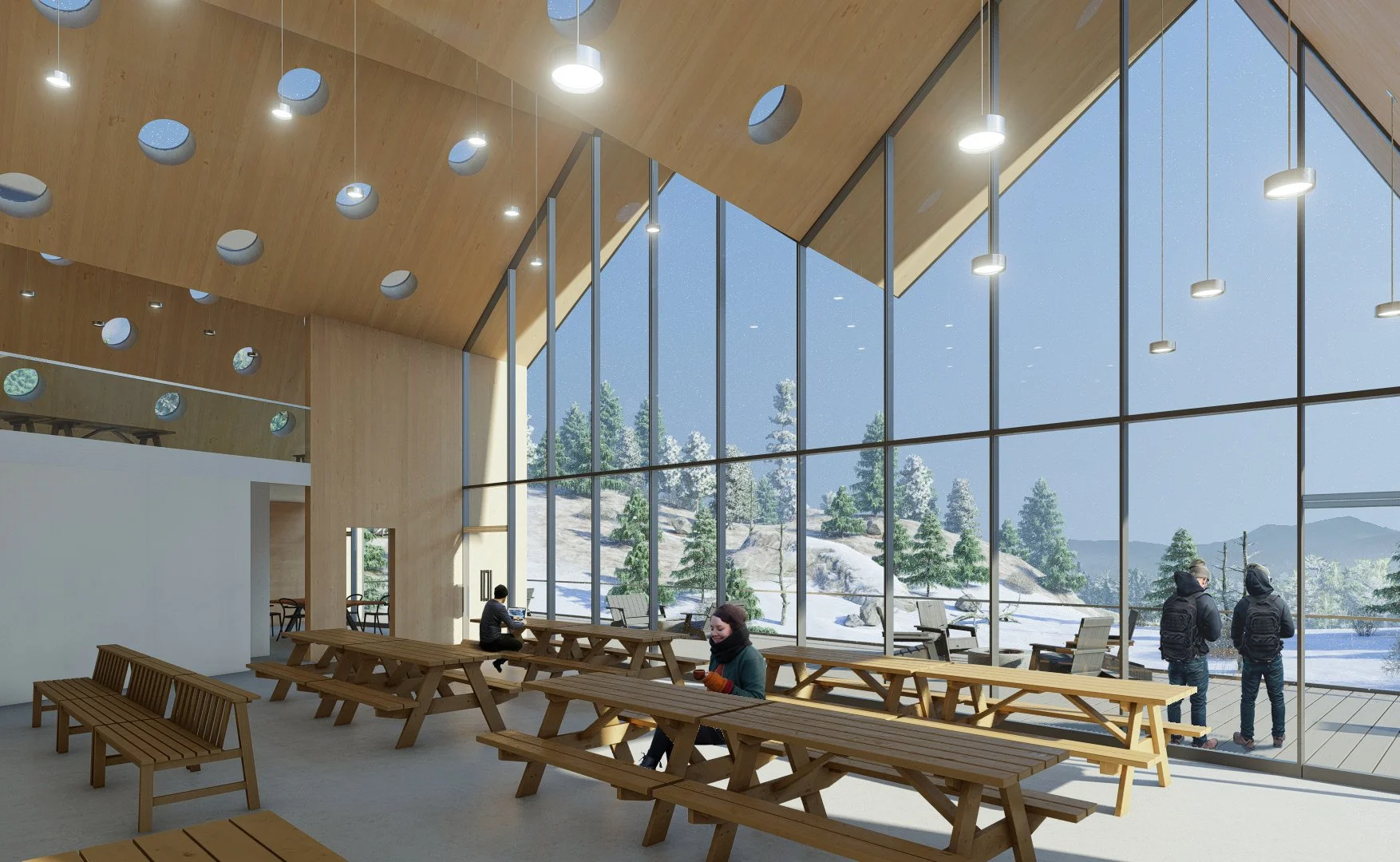

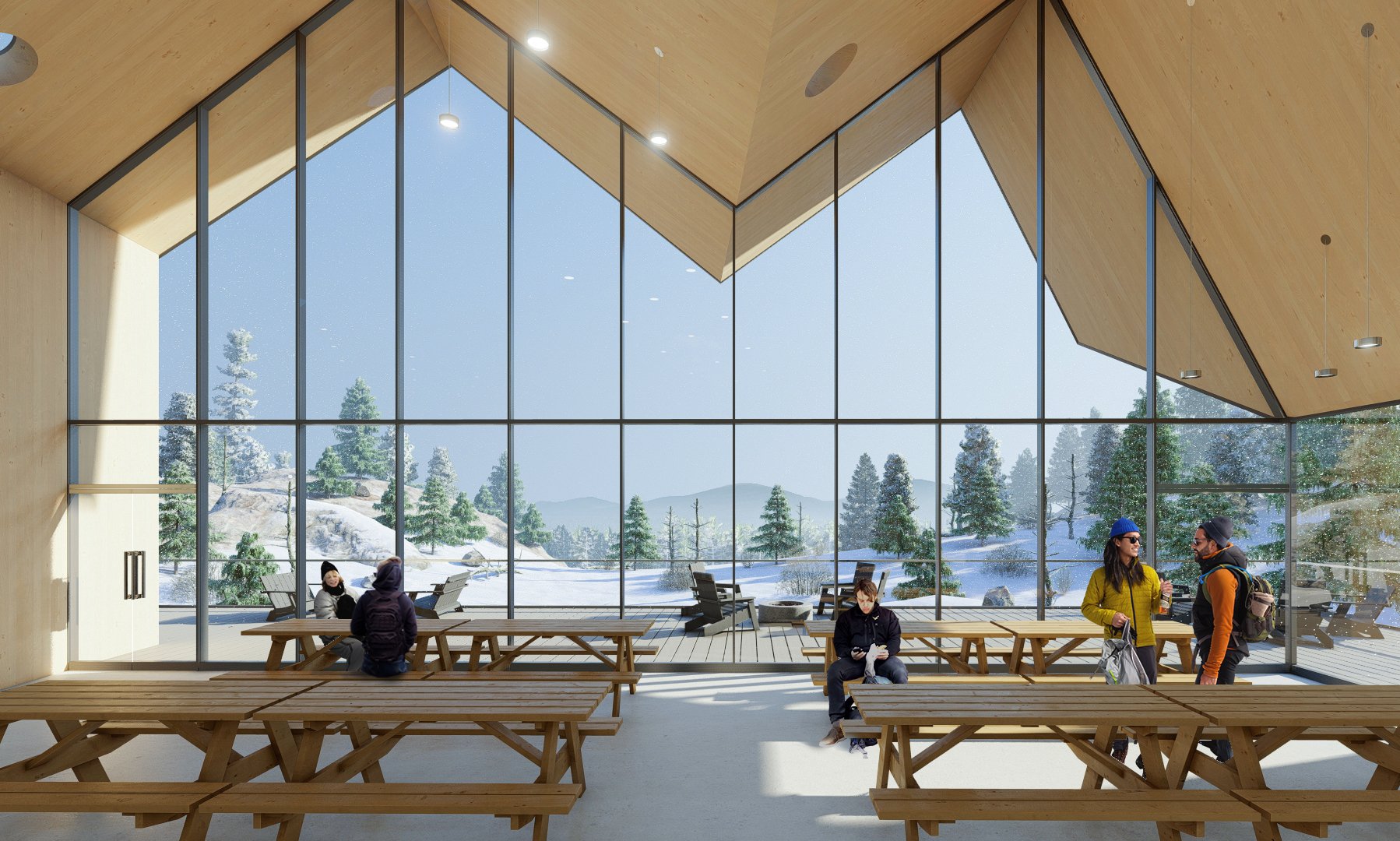

LEFT: CONCEPT FOR PASSIVE SYSTEMS (TOP), TOP AND BOTTOM SIDE VIEWS OF ROOF (BOTTOM); RIGHT: DINING HALL VIEWS

LEFT: CONCEPT FOR PASSIVE SYSTEMS (TOP), TOP AND BOTTOM SIDE VIEWS OF ROOF (BOTTOM); RIGHT: DINING HALL VIEWS

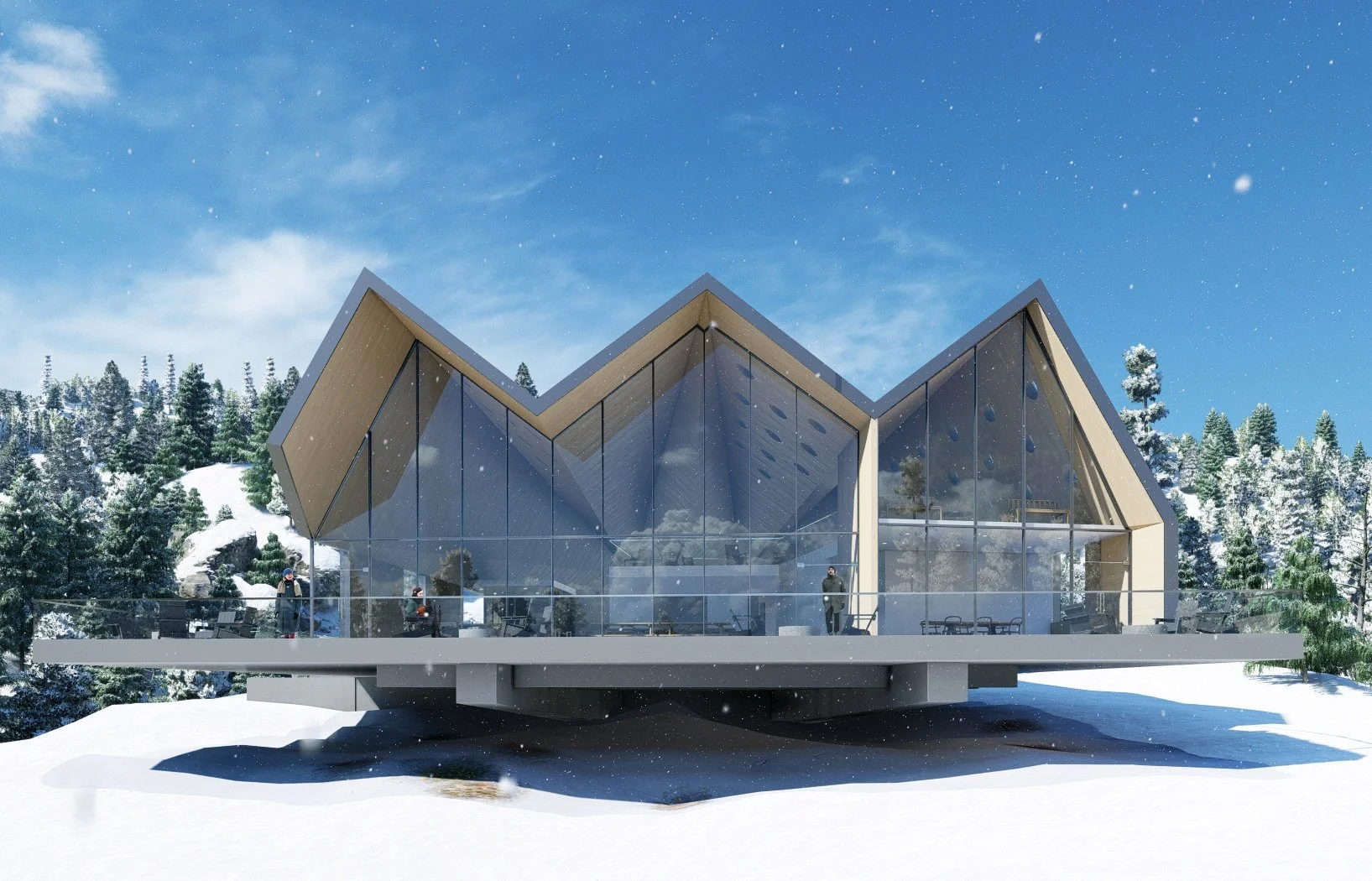

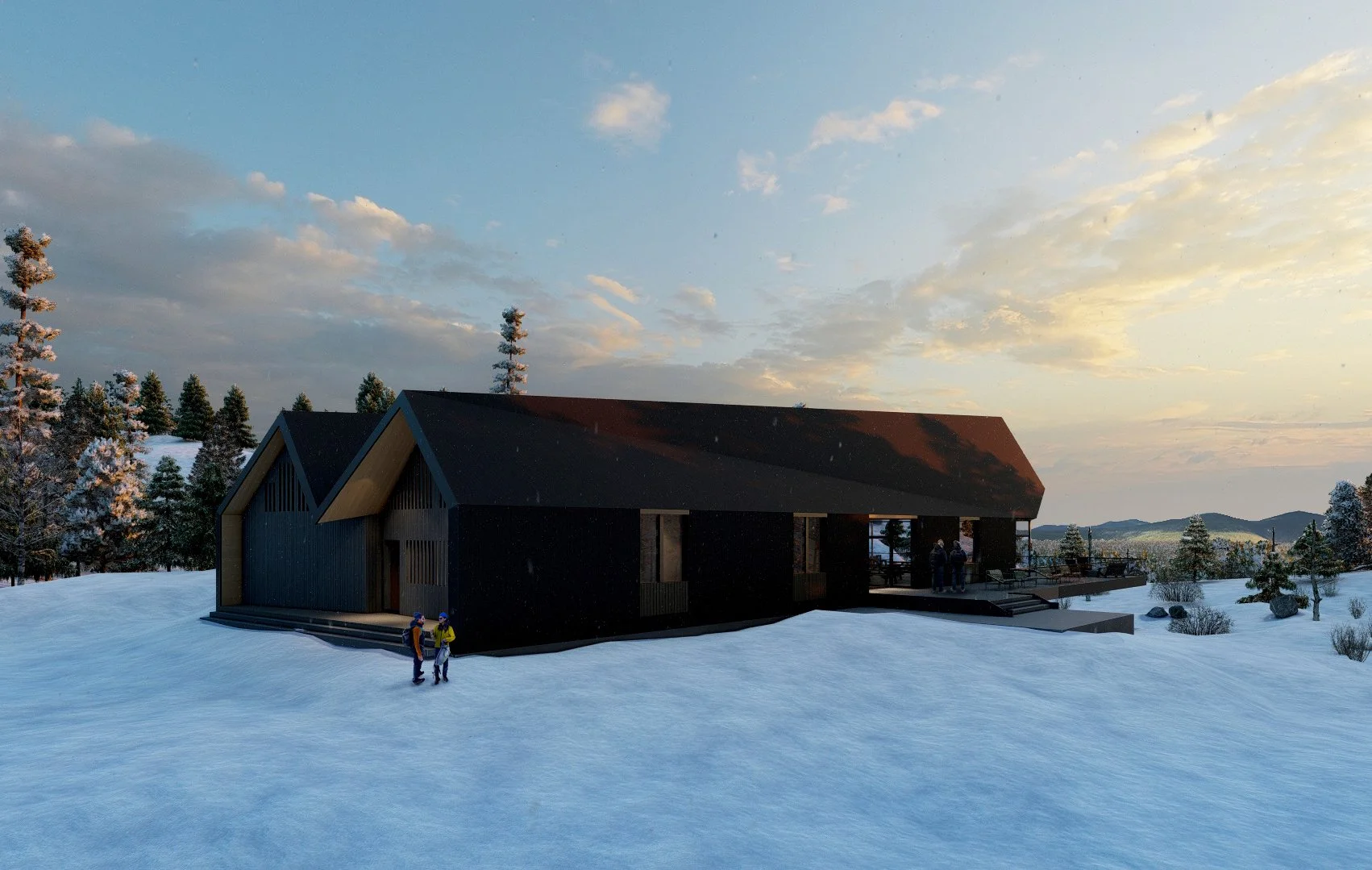

WINTER VIEW OF SOUTHEAST ELEVATION

WINTER VIEW OF SOUTHEAST ELEVATION
